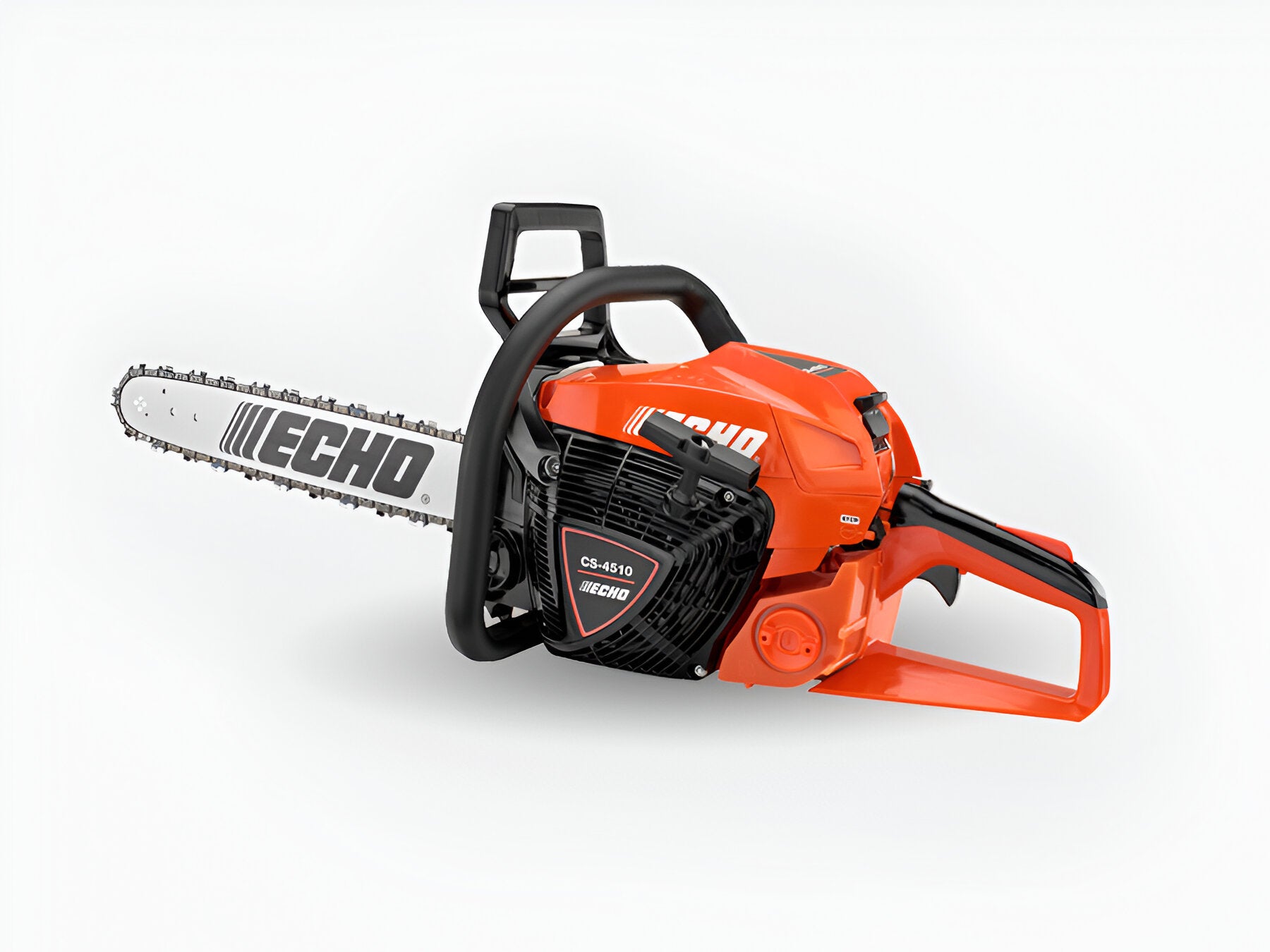

Echo CS-4510-16 in.

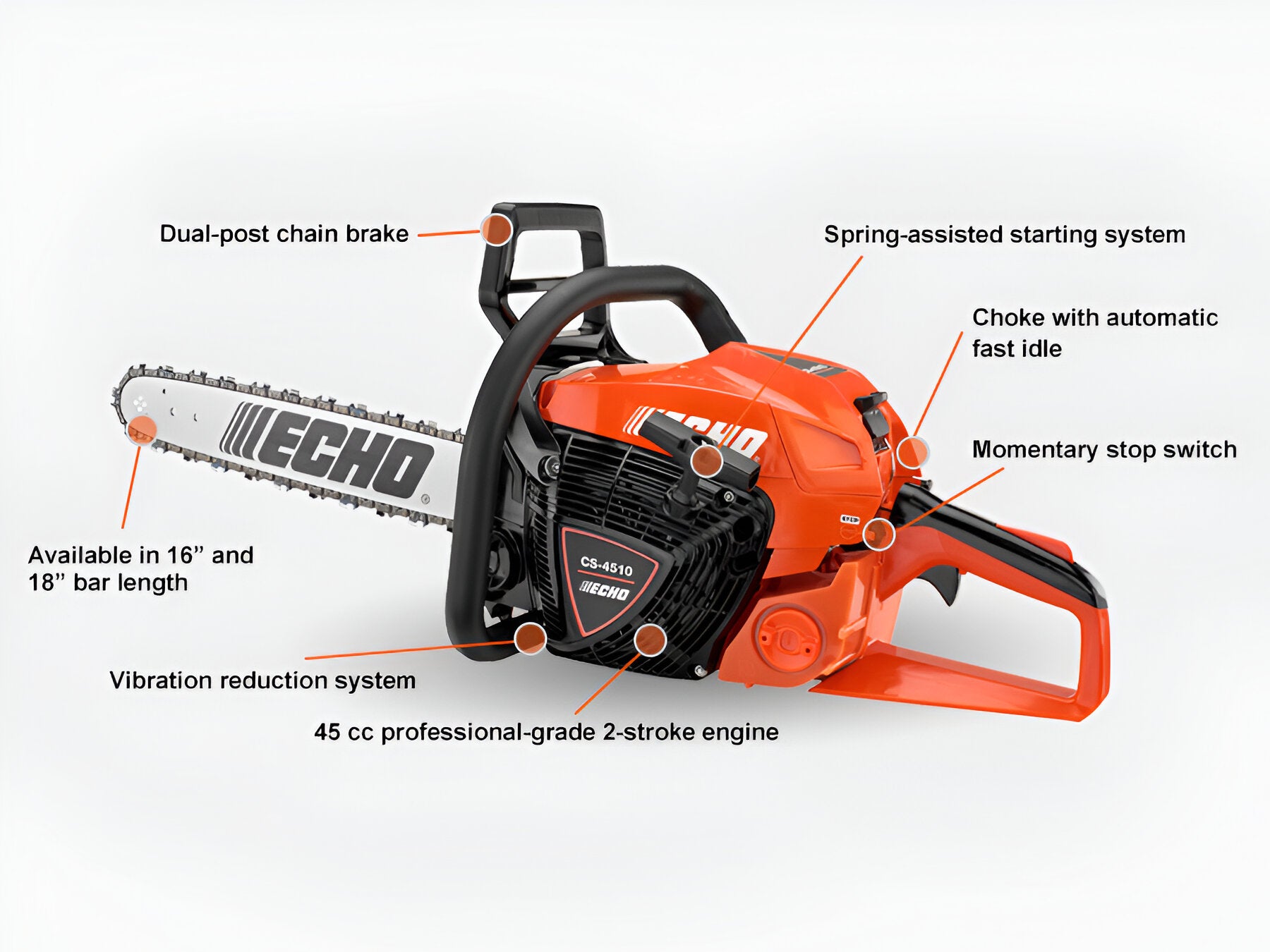

FEATURES

• THREE-POINT SPRING VIBRATION-REDUCTION SYSTEM: Delivers operator comfort
• AUTOMATIC, ADJUSTABLE OILER: Matches the cutting conditions for reduced oil consumption
• CHOKE WITH AUTOMATIC FAST IDLE: Provides for easy starting
• DUAL-POST CHAIN BRAKE: Increases durability
• MOMENTARY STOP SWITCH: Automatically returns to "ON" position
• PURGE BULB: Delivers fresh fuel to carburetor for easier starts
• SIDE-ACCESS CHAIN TENSIONER: For easy chain adjustments
• SPRING-ASSIST STARTER: Reduces starting effort
• AVAILABLE IN 16 IN. AND 18 IN. BAR LENGTHS WITH 20BPX CHAIN: Low-vibration cutters make for smoother cuts
• 45.0 cc professional-grade, 2-stroke engine
• Heavy-duty air filter with tool-less access provides superior air filtration

SPECIFICATIONS

GENERAL INFORMATION

Manufacturer

Echo

Model

CS-4510 - 16 in.

Model Code

NA

Color

Orange

BODY

Housing

Sprocket cover - Plastic

Sprocket type - Spur

Handle

Rear

DIMENSIONS

Length

Available bar - 16 in.

Weight

Dry - 11.1 lb.

ENGINE

Engine

Professional-grade, 2-stroke

Displacement

45 cc (2.75 ci)

Starter

Spring-Assist

Carburetion

Butterfly-Valve Diaphragm (with purge pump)

Fuel Tank Capacity

16.2 fl. oz.

Oil Capacity

11.1 fl. oz.

OPERATIONAL

Guide Bars

Laminated

OTHER

Miscellaneous

Ignition system - Digital

Oiling system - Automatic / Adjustable

Vibration reduction system - Standard

Warranty

Consumer - 5 year

Commercial - 1 year
