General Type

Heavy-duty industrial/commercial

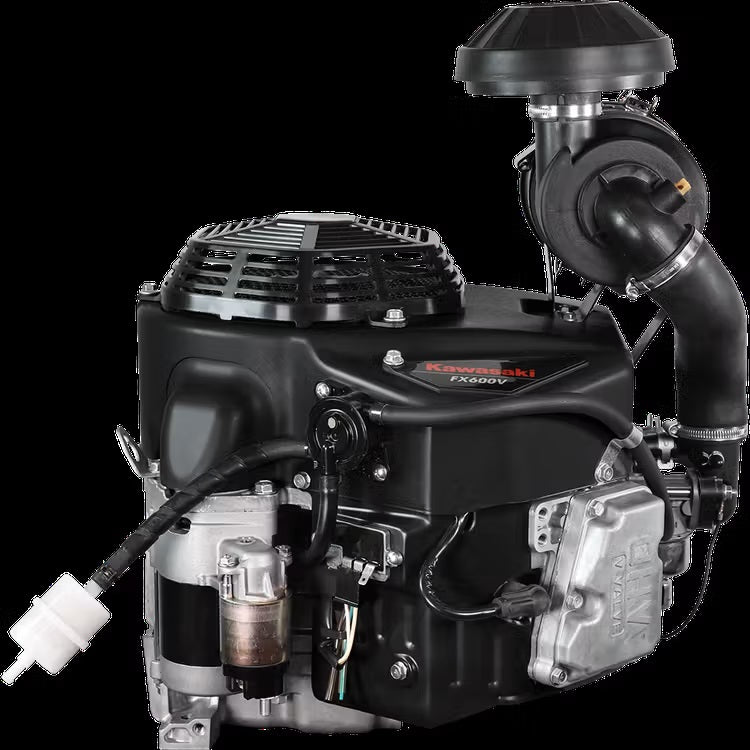

Brand

Kawasaki

Model

FX600V

Horsepower

19HP minimum @ 3600 RPM

Type

4 cycle gas, forced air-cooled, OHV, twin-cylinder, vertical shaft engine

Displacement

603 cc

Cylinder

2 with cast-iron cylinder liners

Governor

Mechanical governor with variable speed control set at 3600 rpm (±100rpm), idle set at 1550 rpm (±150 rpm)

Air Cleaner

Semi-cyclone type with dual element

Exhaust

Single canister muffler

Fuel Pump Group

Pulse-type fuel pump with in-line filter

Oil Pump Group

Full pressure lubrication with oil filter

Starter/Electrical

Electronic ignition with electric start

Balancing

Reciprocating balance weight for reduced engine vibration

Cooling Shroud

Noise suppressive layered shroud for quieter running

Thickness

7 gauge steel

Fuel Tank

6.75 gallon (25.55 liters) seamless polyethylene

Drive Wheels/Tires

20 x 10 - 8 four-ply pneumatic tubeless, radius edge

Brakes

Dynamic braking through hydro drive system; standard equipment parking brake

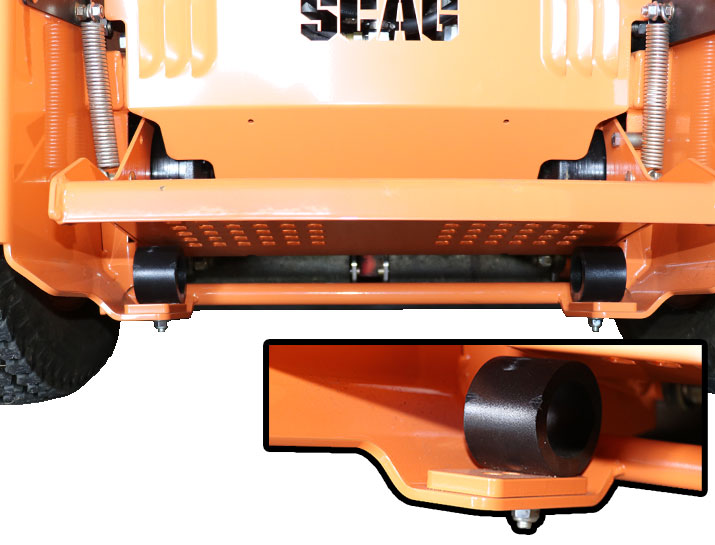

Operator Platform

Heavy gauge steel with extruded star pattern for no-slip footing. Elastomeric spring suspension for operator comfort.

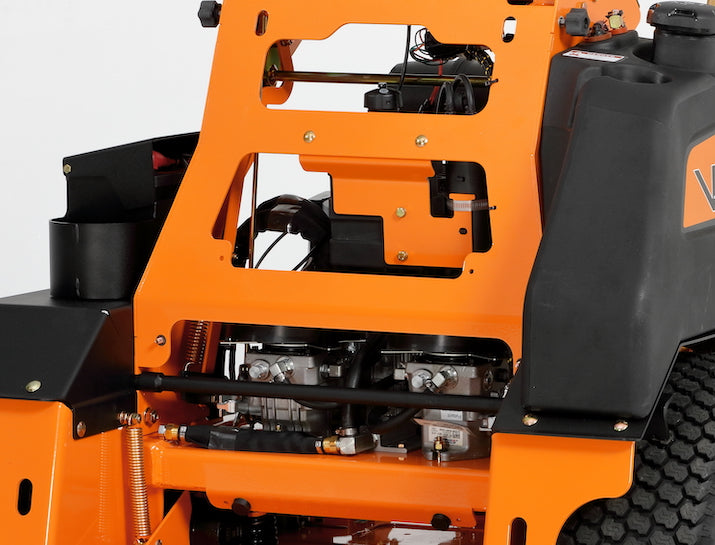

Operator comfort pad

Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics.

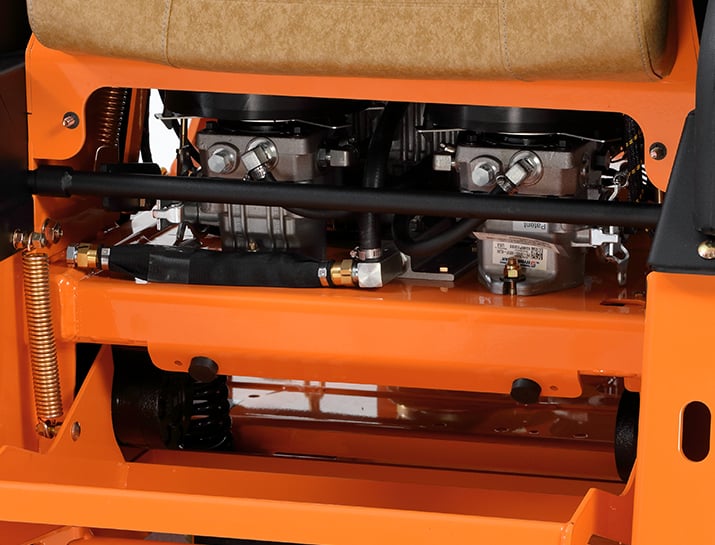

Drive System Type

Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel

Hydro Pumps

Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine

Drive Wheel Motors

Two Parker 12 cu. inch cast-iron high-torque wheel motors

Hydro Fluid Cooling

Pump mounted cooling fans

Steering/Travel Control

Twin lever steering control with individual control to each wheel

Dump Valves

Allows for movement without engine running

Axles

1" heavy-duty, tapered motor shafts

Wire Harness

14 and 16 gauge wire

Safety Group

Footplate-actuated operator presence system, blade/clutch and transmission interlock to engine kill

Forward Speed Range

0 up to 8.5 mph

Reverse Speed Range

0 up to 5.0 mph

Type

Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel

Hydro Pumps

Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine

Drive Wheel Motors

Two Parker 12 cu. inch cast-iron high-torque wheel motors

Hydro Fluid Cooling

Pump mounted cooling fans

Steering/Travel Control

Twin lever steering control with individual control to each wheel

Dump Valves

Allows for movement without engine running

Axles

1" heavy-duty, tapered motor shafts

Wire Harness

14 and 16 gauge wire

Safety Group

Footplate-actuated operator presence system, blade/clutch and transmission interlock to engine kill

Forward Speed Range

0 up to 8.5 mph

Reverse Speed Range

0 up to 5.0 mph

Type

Out-front floating design with special raised front edge and baffling allows all types of grasses to stand up before the cutter blade makes contact for a clean finish without leaving uncut grass.  Works extremely well in all grass types, tall or short, thick or fine.  Advantage cutter deck design allows grass to be cut faster and cleaner.  Easy cutting height adjustments in the field with no tools.

Construction

7-gauge steel cutter deck top with 10-gauge and 11-gauge support plates, 7-gauge deck skirt

True Cutting Width

35.5 inches (90.2 cm)

Cutting Height Adjustment

1-1/2" to 4-1/2" in 1/4" increments

Deck Baffles

Adjustable Custom-Cut Baffle design

Cutter Blades

Two (2) 18" high-strength steel cutter blades

Blade Engagement

Electric blade clutch engagement with dash panel switch

Discharge Opening

Extra wide 11-1/2" discharge opening with spring-loaded discharge chute

Caster Wheels

11 x 4.0 - 5 flat-free semi-pneumatic, with tapered roller bearing pivots

Spindles

Heavy-duty 1-1/8" top dimension spindle shaft, cast-iron housing, tapered roller bearing, low maintenance

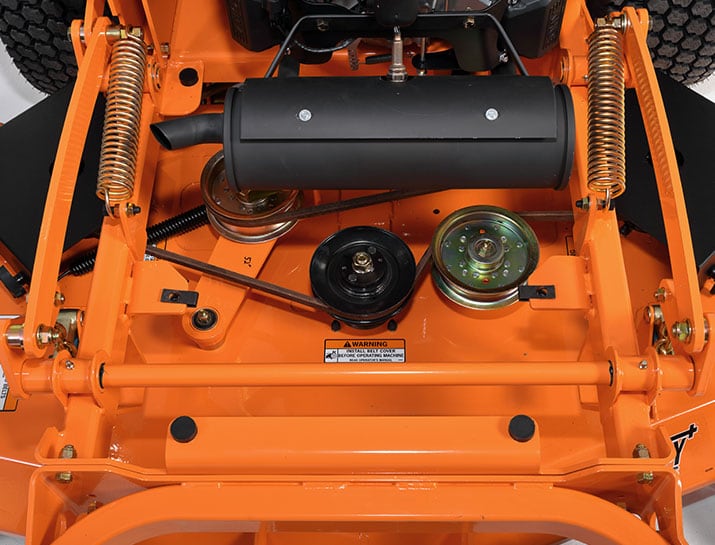

Spindle Pulleys

Split steel pulley design with easily removed tapered hubs

Idler Pulley

Large 5" diameter pulley, welded and riveted construction, 1-3/8" O.D. bearings

Idler Arm

Heavy-duty dual ball bearing mounting

Cutter Deck Belts

B-section with Kevlar cord

Push Arms

Rear push arms allow for easy cutting height changing and increased durability

Fabric Grass Catcher

GC-F4 Grass Catcher with 4 cubic ft. capacity

Mulching System

Hurricane Mulch System includes “Eye of the Hurricane” mulching plates, bolt-in v-baffles and flow directors, Eliminator blades, a side discharge close-off plate and hardware. Best performing, most productive mulching system available for commercial mowers.

Mulching Plate

Steel mulching plate fits over discharge opening. No blade change or removal required. Installs and removes in the field.

Light Kit

2,800 lm LED light kit is easy to mount, and provides bright white light. Two (2) lights; 1,400 lumens per light.

Blade Buddy

Patented blade protector makes removal and re-installation of blades safe and easy.

Length

65.25"

Tracking Width

36.00"

Width

47.75"

Width (with discharge in transport position)

37.25"

Height

47.00"

Turning Radius

zero radius turning

Weight

832 lbs.
