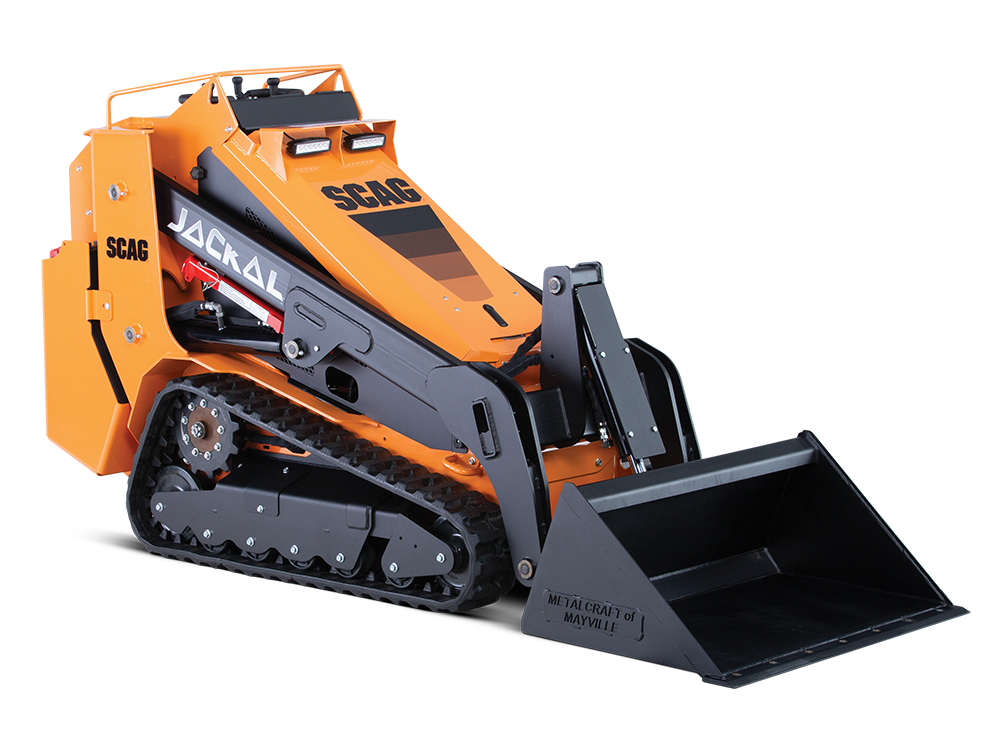

SCQW SJ1125-W-40-25KSD
|
MODEL NUMBER: SJ1125-W-40-25KSD
ENGINE
General Type: Heavy-duty industrial/commercial
Brand: Kohler
Model: KSD 1403NA
Horsepower:24.7 HP @ 2600 RPM
Torque: 66.4 ft-lbs. (peak)
Type: 4-cycle diesel, 3-cylinder, liquid-cooled, horizontal shaft
Displacement: 1.31 L (79.94 cubic inch)
Cylinders: 3
Cooling Group: Heavy-duty radiator. Engine cooling fan, water pump. Water temperature sensor.
Governor: Mechanical type governor with variable speed control set at 2600 rpm, idle set at 1000 rpm
Air Intake Group: Large capacity 2-stage canister air filter
Exhaust Group: Single exhaust canister muffler
Fuel Pump Group: Electronic fuel injection
Oil Pump Group: Pressure Lube, capacity 3.7 L (3.9 qt.) with filter
Starter/Electrical: 12 volt "maintenance-free" sealed battery (690 CCA) with alternator, solid-state ignition with key start, fixed timing
Charging System: 45 amp
CHASSIS
Fuel Tank: 12-gallon total capacity (45.4 L); dual 6-gallon tanks
Operator Platform: Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference.
Operator comfort pad: Padded operator cushion can be easily removed without tools for access to hydraulics
Tie-Down: Multiple easy-access tie-down points for easy trailering.
Ground Clearance: 7.5"
HYDRAULIC DRIVE SYSTEM
Type: Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track
Track: Dual 7"-wide, reinforced tracks included; 5.5 psi of ground presure. Easy-change capability between narrow (7") and optional wide (9") tracks.
Hydro Pumps: Two 18cc pumps with dump valves for movement without running engine; one cooling fan
Drive Wheel Motors: Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors
Auxiliary Hydraulic System: 15 GPM at 3,000 psi
Hydro Reservoir: 12-gallon capacity cooling reservoir; uses MV68 fluid and 10 micron filter
Steering/Travel Control: Easy-to-use joystick drive control lever via pilot servo
Dump Valves: Allows for movement without engine running
Parking Brake: Mechanical sprocket lock
Safety Group: Footplate-actuated operator presence system interlock to engine kill
Forward Speed Range: 0 up to 4.0 mph
LIFT SYSTEM / LOADER ARMS
Type: Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments
Control: Easy-to-use joystick control lever
Lift Capacity: 1,125 lbs. maximum
Tip Capacity: 3,142 lbs.maximum
Bucket Width: 40" inside width; 42" cutting width
Hinge Pin Height: 83"
Maximum Bucket Angle Rollback: 25°
Bucket Dump Angle: 40
OPTIONAL ITEMS/ATTACHMENTS
Narrow (7") Track: Reduce your machine's footprint to fit through gates and other tight spaces.
Rear Worklights: Improves rearward visibility when working and transporting in low-light conditions.
Counterweight Kit: Increases lift capacity by 300 lbs.
APPROXIMATE DIMENSIONS
Length (without front attachment): 86"
Length (with bucket): 112"
Width (without front attachment): 40"
Width (with bucket): 42"
Height: 56.5"
Weight (no fuel, no attachment): 3114 lbs.
Weight with 40" bucket: 3335 lbs.
