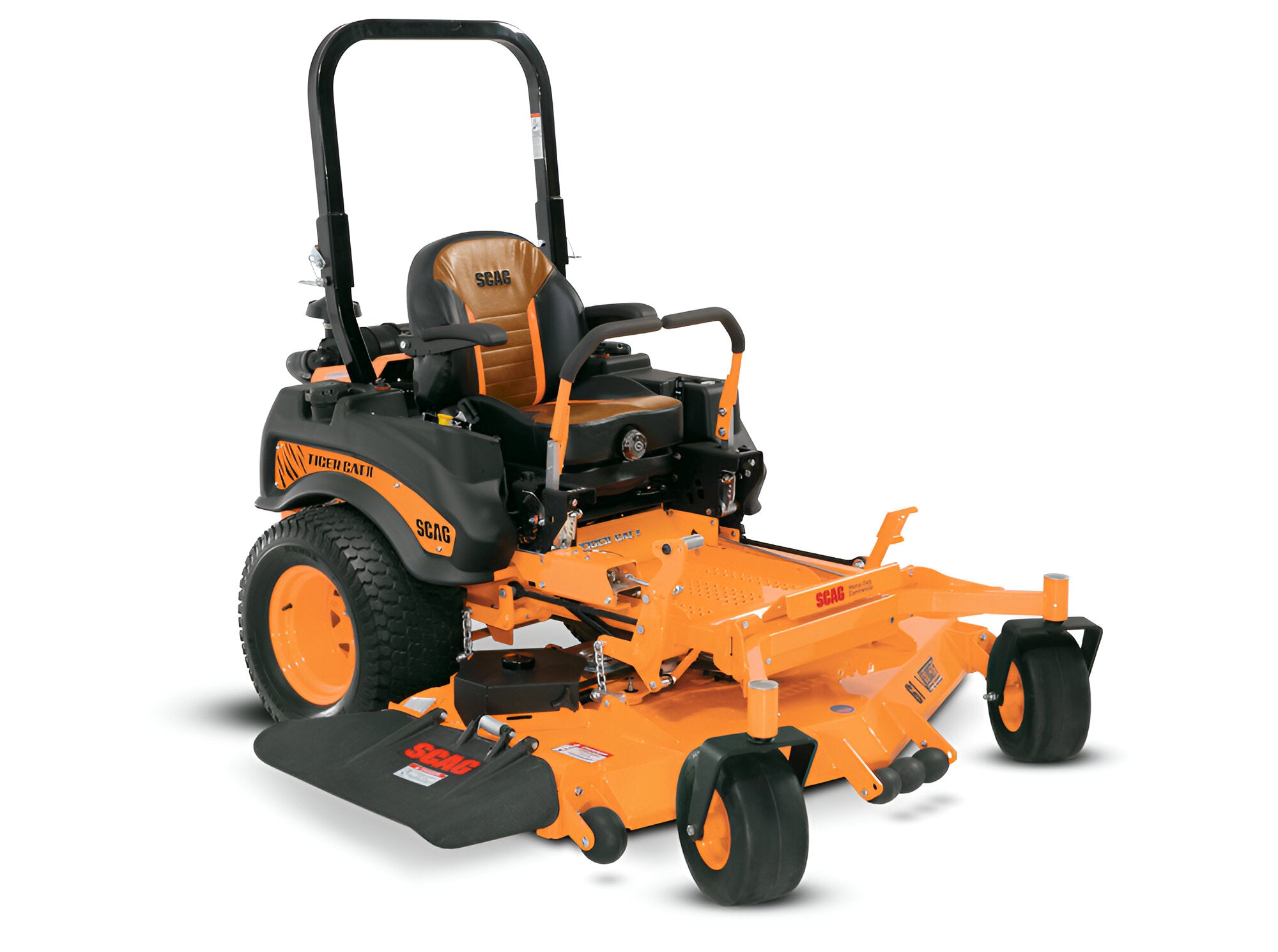

Model: STCII-48V-22FX

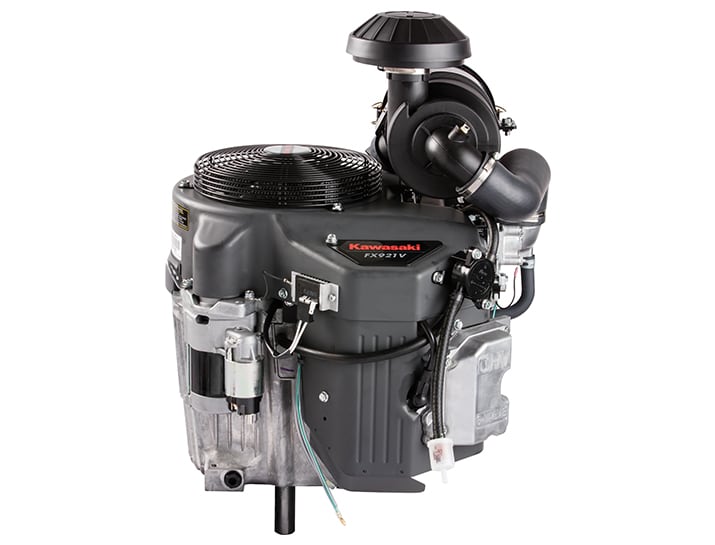

ENGINE

General Type:  Heavy-duty industrial/commercial
Brand: Kawasaki
Model: FX691V
Horsepower: 22HP minimum @ 3600 RPM
Type:  4 cycle gas, twin-cylinder, air-cooled, vertical shaft engine
Displacement: 726 cc (44.3 cubic inch)
Cylinders: 2 cast-iron cylinder liners
Governor: Mechanical type governor with variable speed control set at 3600 rpm (±100                    rpm), idle set at 1550 rpm (±150 rpm)
Air Intake Group: Large capacity 2-stage canister air filter
Exhaust: Side-mount single canister
Fuel Pump Group:  Pulse-type fuel pump with in-line filter; twin-barrel, internally                                             vented carburetor with fuel shut-off
Oil Pump Group: Full pressure lubrication with oil filter
Starter/Electrical: Electronic ignition with electric start
Balancing: Reciprocating balance weight for reduced engine vibration
Cooling Shroud: Noise suppressive layered shroud for quieter running
Starter/Electrical: 12 volt "maintenance-free" sealed battery (350 CCA) with alternator,                                   solid-state ignition with key start, electronic spark system
Charging System: 13 amp

ENGINE DECK

Fuel Tank: Dual tanks (9.5 gallons / 35.9 liters total) with extra-large easy-fill openings                        and over-sized fuel caps, remote mount switching valve, molded-in cup                            holder Drive Wheels/Tires: 24 x 9.5 - 12 four-ply pneumatic tubeless, radius                      edge, wide offset rims for better traction
Parking Brake: Foot-operated brake with park lock feature.  AUSCO disc brakes feature                            a rotor and caliper style design for maximum holding power.
Frame: Compact frame design with structural steel tube construction, welded.                               Engineered for a low center-of-gravity for increased incline performance.

DRIVE SYSTEM

Type: Hydro drive with two variable displacement pumps and two cast-iron wheel                      motors for independent control of each drive wheel
Hydro Pumps: Two Hydro-Gear Model 12cc pumps with cooling fans feature dump                                 valves for movement without running engine.  Built-in pressure relief                                 valves add to hydraulic system life and reliability by reducing high                                     pressure fluid spikes.
Drive Wheel Motors: Two Parker 14.5 cubic inch cast-iron, high-torque wheel motors
                                     Transmission Belt Idler: Self-adjusting, self-tightening, with                                                 permanently lubricated bearings
Hydro Fluid Cooling Group: 4 qt. capacity nylon fluid reservoir, uses SAE 20W50 fluid                                                    and 10-micron filter
Steering/Travel Control: Twin lever fingertip steering control with gas shock for                                                        smooth, responsive control to each wheel
Axles: 1-1/4" heavy-duty, tapered motor shafts
Wire Harness: 14- and 16-gauge wire.  Tightly wound protective wire loom.  Dielectric                             grease at major electrical connections.
Safety Group: Seat actuated engine kill, neutral interlock, mower engagement (PTO)                                 switch, parking brake
Instrument Panel: Mounted at the right side of the operating position for easy access.                                   Key switch, throttle, fuses, manual choke, PTO switch, Tiger Eye                                           Advanced Monitoring System, and 12-volt accessory outlet.
Forward Ground Speed Range: 0 up to 12.0 mph
Reverse Ground Speed Range: 0 up to 5.0 mph

CUTTER DECK

Type: Velocity Plus, floating, adjustable anti-scalping, hybrid design combines out-front              and belly- mount designs, special raised front edge allows grass to enter the deck            standing upright for a fast, manicured cut.
Construction: Tri-Plate construction consists of a 7-gauge steel cutter deck top                                        reinforced with 10-gauge upper support plate and an 11-gauge lower                                spindle support plate.  These three layers of steel equal close to a 1/2"                              thick steel cutter deck top.  Deck skirt is 7-gauge.  Trim side wear pad                                protects deck and landscape.
True Cutting Width: 48.0 inches (122.0 cm)
Cutting Height Adjustment: Foot-operated pedal adjustment with deck easy-access                                                       deck latch lever adjusts from operator’s seat, 1" to 5" in                                                       1/4" increments
Cutter Blades: Three (3) 16.5" high-strength cutter blades
Cutter Deck Baffles: Velocity Plus deck baffles direct air flow for maximum quality-of-                                       cut.  Custom Cut Baffle allows adjustment to individual cutting                                           conditions (7 positions).
Blade Engagement: Electric PTO via Ogura GT3.5 (250 ft. lb) clutch brake with control                                        panel knob
Discharge Baffles: Turbo-Baffle for extra discharge velocity with spring-loaded plastic                                    discharge chute
Caster Wheels: 13 x 6.5 x 6 flat-free caster wheels (4-ply) with tapered roller bearing                                  pivots and axles
Spindles: Heavy-duty 1-1/8" top dimension spindle shaft, cast housing, tapered roller                      bearing, low maintenance with top access grease fitting and grease overfill                        relief poppet
Idler Arms: Spring-loaded for continuous belt adjustment and longer life, permanently                        lubricated bearings
Spindle Pulleys: Split steel design with easily removed tapered hubs.  Split steel is                                        stronger than stamped or cast-iron pulley designs.
Cutter Deck Belts: B-section with Kevlar cord
Anti-Scalp Rollers: Two front 4-1/2" adjustable, two rear 10" fixed

ADDITIONAL SPECIFICATIONS

R.O.P.S.: OSHA 1928 certified roll-over protection system.  System has foldable design                     for loading into
Tiger Eye Advanced Monitoring System: Blue backlit monitoring screen is IP67 rated.                           Gauge monitors crucial system and safety functions; integrated hour                                 meter and much more (functions vary by model)
Suspension Seat: 4-point iso-mounted suspension seat with padded arm rests, lever                                     adjustment forward and back.
Cup Holder: Conveniently molded into left-side fuel tank.

OPTIONAL ITEMS / ATTACHMENTS

Grass Collection System - Three (3) Bag: GC-3B Grass Catcher with 16-bushel (148                 gallon) capacity.  Three separate, commercial grade fabric debris bags with hard               plastic bottoms and steel handles.  Vertical blower design adds only 8.5" to the                 width of the cutter deck. construction. Blower shreds debris for maximum density             in the debris bags.  Easy on and off Spindle driven blower design, 4-blade, all steel           design - no tools needed to remove and install after initial installation is complete.
Grass Collection System - Clam-Shell: Dump from the seat "Clam Shell" collection                   system allows operator to empty the hopper without leaving the seat for increased           productivity.  Spindle driven catcher system has 12 bushel (112 gallon) capacity.               All steel, vertically mounted blower housing.  Internal sweeping device clears                     debris from the hopper every time the door is opened.  Debris screen removes                 from side of hopper for easy cleaning even when hopper is partially full.  After                   initial installation, the entire system removes and installs in the field with no tools             in just minutes.  Front weight kit included with catcher system.
E-OCDC: Electric-operated Operator-Controlled Discharge Chute allows the operator to           temporarily close off the cutter deck’s discharge opening when mowing along                   sidewalks, around flowerbeds, etc.
Mulching System: Hurricane Plus Mulch System includes “Eye of the Hurricane”                         mulching plates, bolt-in v-baffles and flow directors, Eliminator blades, a side                   discharge close-off plate and hardware.
Mulching Plate: Steel plate fits over discharge opening.  No blade change or removal               required.  Installs and removes in the field.
Light Kit: 2,800 lm LED light kit is easy to mount, and provides bright white light. Two               (2) lights; 1,400 lumens per light.
Flat-Free Caster Tires: Semi-pneumatic caster tires minimize downtime resulting from             flats.
Lawn Striping System: Patented Tiger Stripe kit features eight (8) individual rollers with           bushings for long life.  Spring- loaded design pushes the grass down for a deep,               longer lasting stripe.  Unit locks up and can be removed without tools with two (2)           quick-pins.
Blade Buddy: Blade protector makes removal and re-installation of blades safe and easy.
Trailer Hitch: Bolt-on trailer hitch with 250 lb. capacity.
Chrome Wheel Covers: Durable plastic with metal retaining tabs, access hole for valve             stem and Scag logo
Air Filter Monitor: Plug and Play accessory for activating the air filter indicator light on             the Tiger Eye Advanced Monitoring System. Icon will display on Tiger Eye when air           filter needs servicing.

APPROXIMATE DIMENSIONS:

Length: 81"
Tracking Width: 47"
Width: 60.5"
Width (with discharge in transport position): 49"
Height (with ROPS): 67.25"
Height (with ROPS folded down): 46.75"
Turning Radius: zero radius turning
Weight: 1171 lbs.
