Description:

Quality and performance come standard.

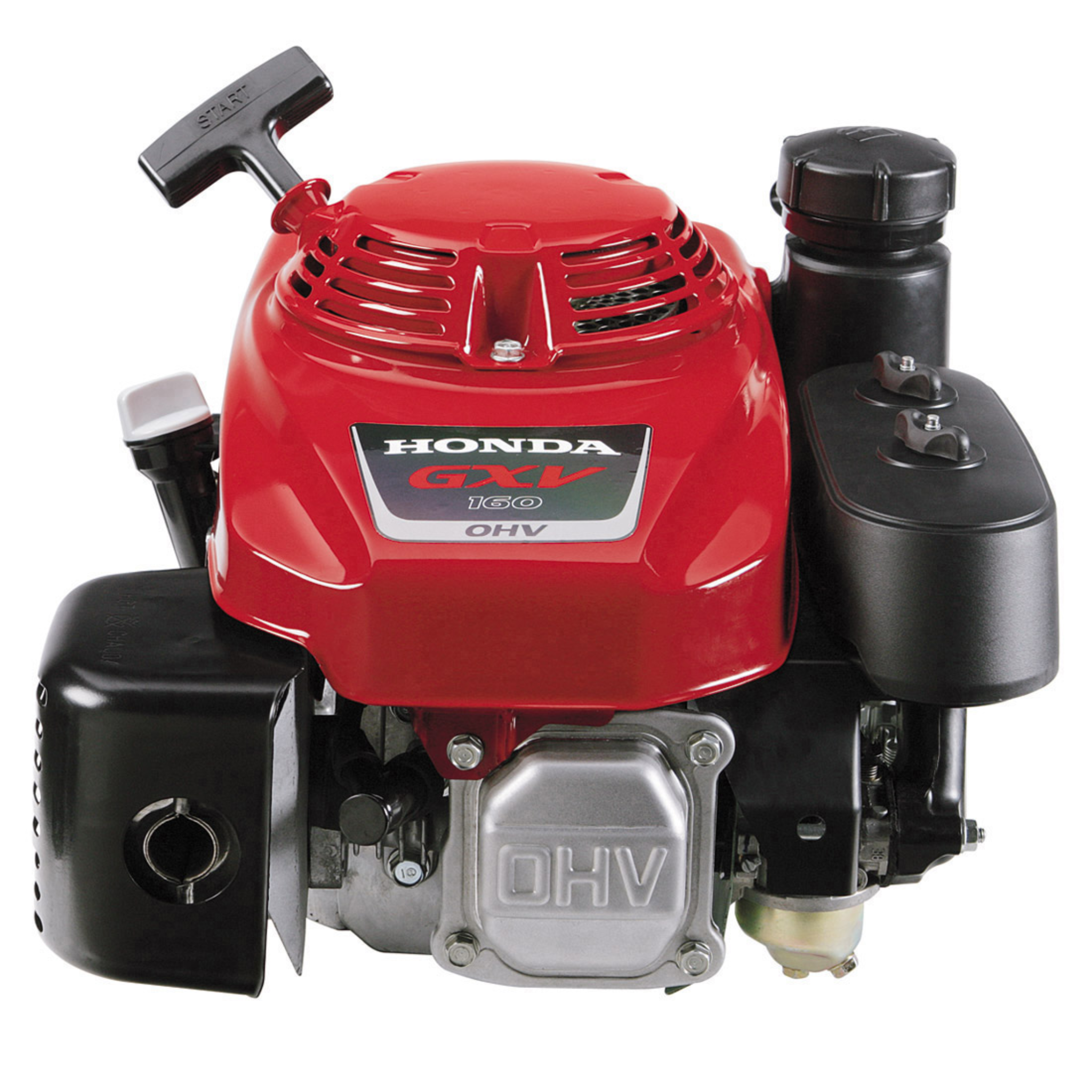

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• Common Application:
• Lawn mowers
• Commercial lawn and garden equipment
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment

Features:

• Fuel Efficient, High Output Operation:
• Precision camshaft design for optimal valve timing and overlap
• OHV (Overhead Valve) design enhances efficiency and power transfer
• High compression ratio improves fuel efficiency
• Smooth Performance:
• Precision engineered components minimize vibration
• Ball bearing supported crankshaft for stability
• Large capacity, multi-chamber exhaust system reduces mechanical noise
• Helical cut gears and sophisticated air intake system further contribute to smooth operation
• Exceptionally Quiet:
• Lightweight, noise-reducing materials
• Forged steel crankshaft and rigid crankcase contribute to noise reduction
• Proven Reliability:
• Oil Alert feature enhances engine durability by monitoring oil levels
• Cast iron cylinder sleeve for durability
• Dual element air cleaner ensures clean air intake
• High-quality materials and finish ensure longevity
• Easy to Use and Maintain:
• Large fuel tank for extended operation
• Easily accessible spark plug for maintenance
• Easy Starting:
• Heavy-duty recoil starter
• Automatic mechanical decompression system for effortless starting
• Emissions Compliant:
• EPA certified, no catalyst required
• Available Options:
• Gear reduction options available
• Electric start option
• Spark arrester available
• Multiple output options for charge and lamp coils

Specifications:

• Engine Type: Air-cooled 4-stroke OHV
• Bore x Stroke: 68 X 45 mm
• Displacement: 163 cm3
• Net Power Output: 4.3 hp (3.2 kW) @ 3,600 rpm
• Net Torque: 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Compression Ratio: 8.0:1
• Carburetor: Float Type
• Ignition System: Transistorized magneto
• Starting System: Recoil
• Lubrication System: Splash
• Governor System: Centrifugal Mechanical
• Air Cleaner: Dual element
• Oil Capacity: 0.69 US qt (0.65 liters)
• Fuel Tank Capacity: 1.5 U.S. qts (1.4 liters)
• Fuel: Unleaded 86 octane or higher
• Dry Weight: 32 lb (14.5 kg)

Dimensions:

• Length: 16.3" (415 mm)
• Width: 14.1" (359 mm)
• Height: 13.9" (354 mm)
