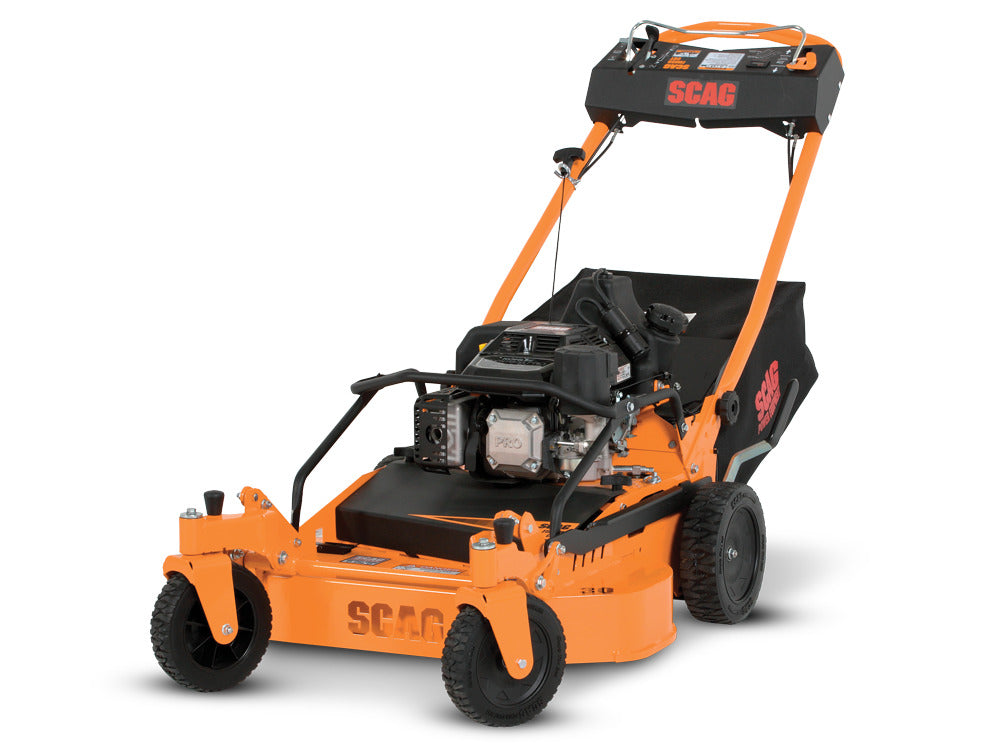

Scag 30" Fabricated Deck, Kohler 224CV, Recoil Start SFC30-7CV

Echo Image
$2,620.00
✓ In Stock

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.


Features:

Mow with Ease

  • Front Swivel Caster Wheels: Enhance maneuverability in landscaped areas with front swivel caster wheels. Convert fixed wheel models to swivel with an available accessory.

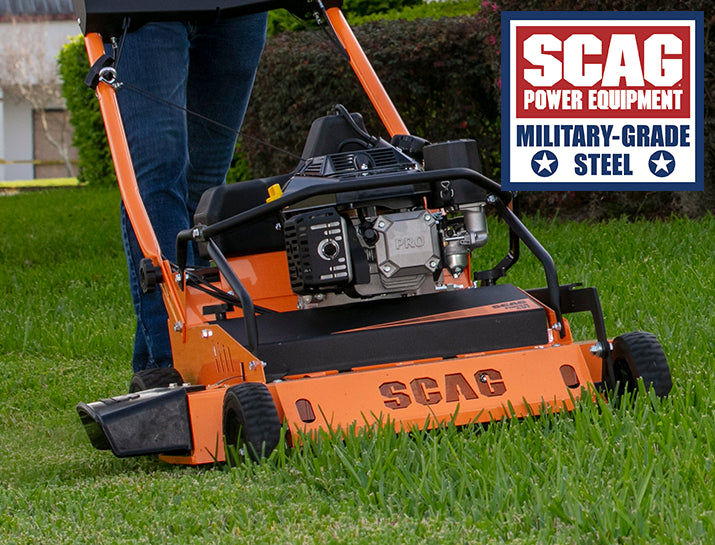

Fully Fabricated and Welded Steel Cutter Deck

  • Military-Grade Steel Deck: Constructed with a 14-gauge, grade 100 Military-Grade steel deck shell, 12-gauge spindle reinforcement plate, and ¼” side reinforcement bar for unmatched durability and a quality cut.

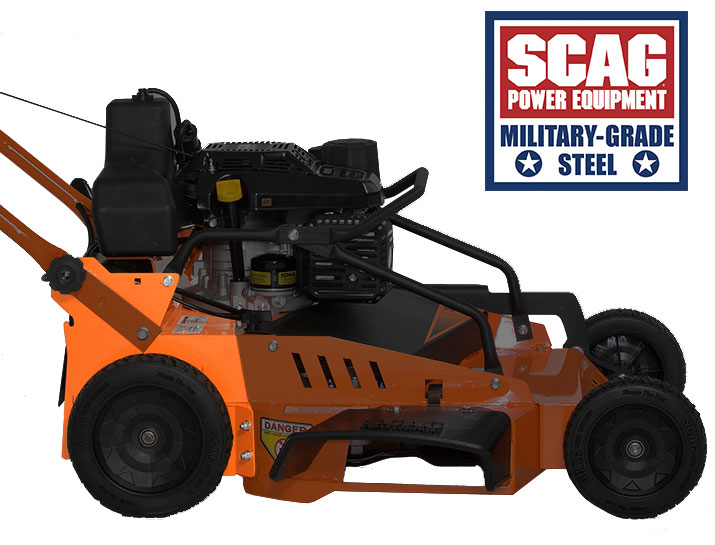

Fully Fabricated and Welded Steel Frame

  • Military-Grade Steel Frame: The steel frame is over 200% stronger than standard drawing steel used in common stamped frames and decks, providing superior strength and longevity.

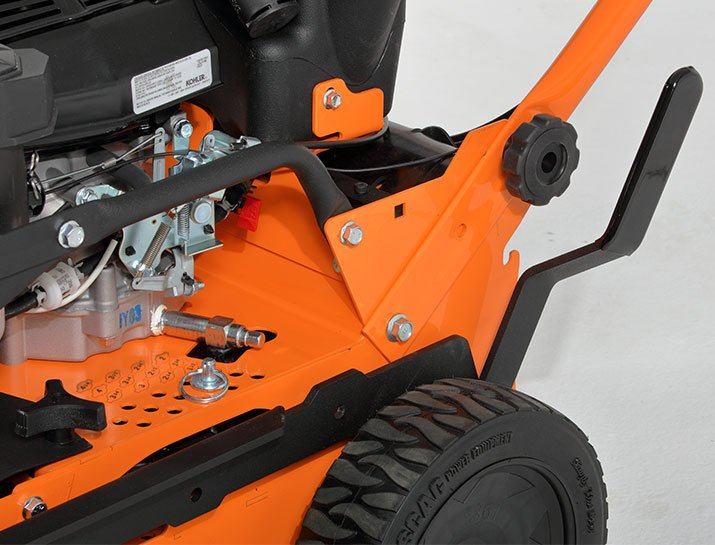

Single Point Height-of-Cut Adjustment

  • Fine-Tuned and Simple: Easily adjust the cutting height from a single location, with settings from 1.5” to 5” in .25” increments, eliminating the need for multiple adjustments.

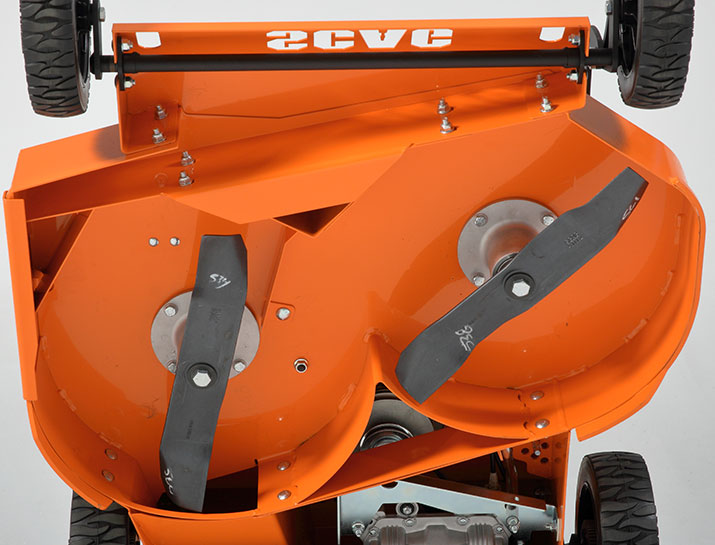

Offset Blade Setup

  • Simplified Deck Drive System: Features a less complex, easier-to-maintain offset blade design compared to traditional timed deck setups. Reduces repair/replace time for belts.

Scag Level Quality-of-Cut

  • Unmatched Performance: Large cutting chamber processes more grass and efficiently handles wet and lush springtime grasses. Oversized discharge opening for superior performance.

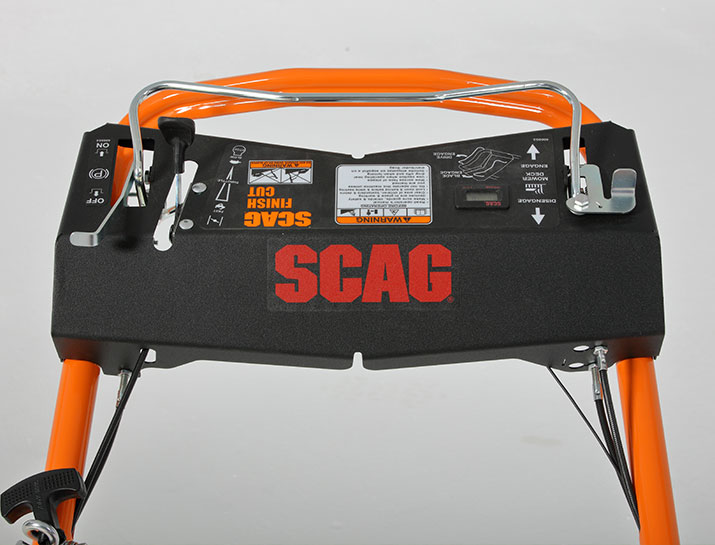

Operator Control Panel

  • Ergonomic Controls: Controls are designed to match the natural angles of your hands, making them easily accessible. Includes blade brake engagement, drive engagement, recoil start, throttle/choke, hour meter, and park brake.

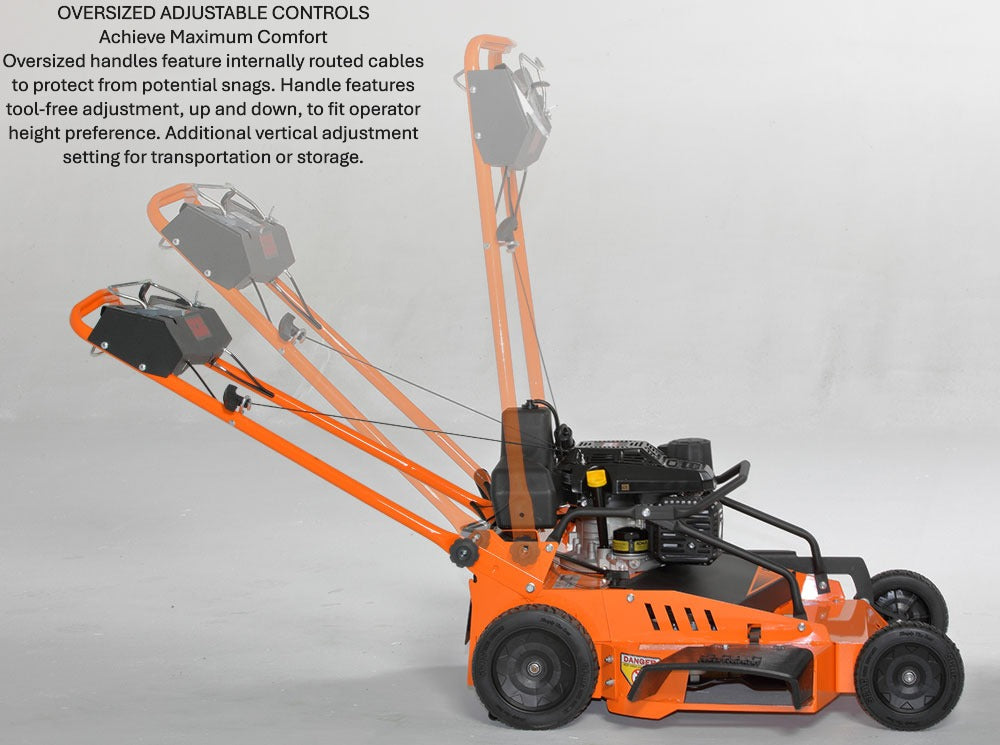

Oversized Adjustable Controls

  • Achieve Maximum Comfort: Oversized handles with internally routed cables for protection and tool-free height adjustment for operator comfort. Includes vertical adjustment for transportation or storage.

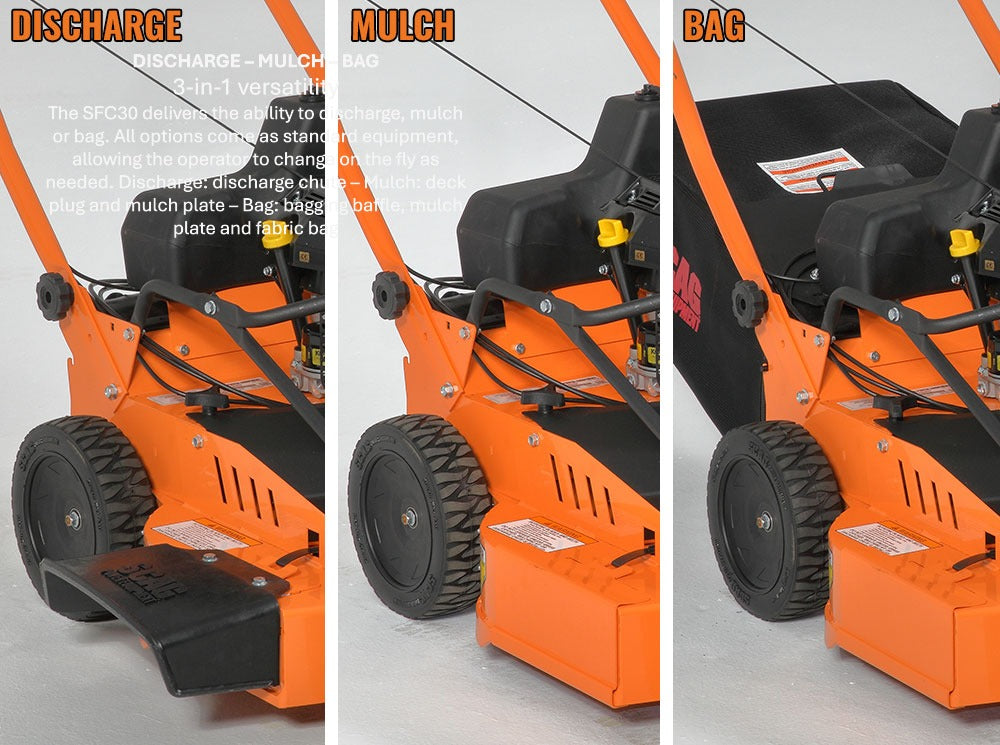

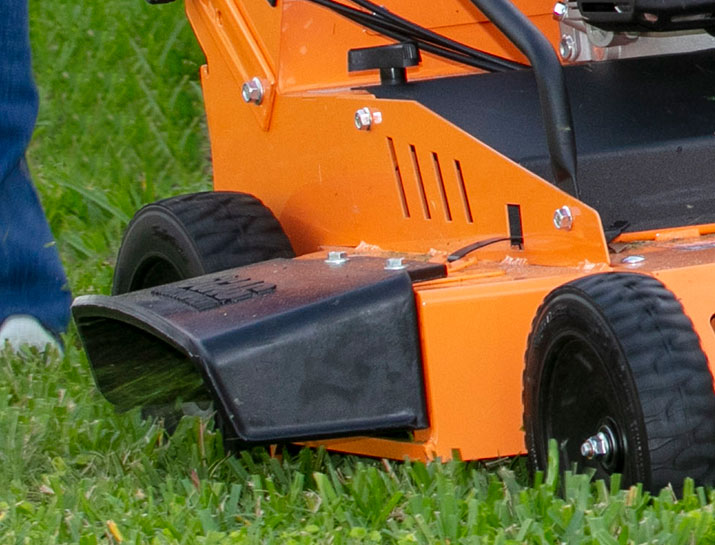

Discharge – Mulch – Bag

  • 3-in-1 Versatility: Offers discharge, mulch, or bag options. Standard equipment includes discharge chute, deck plug and mulch plate, bagging baffle, and fabric bag for flexible operation.

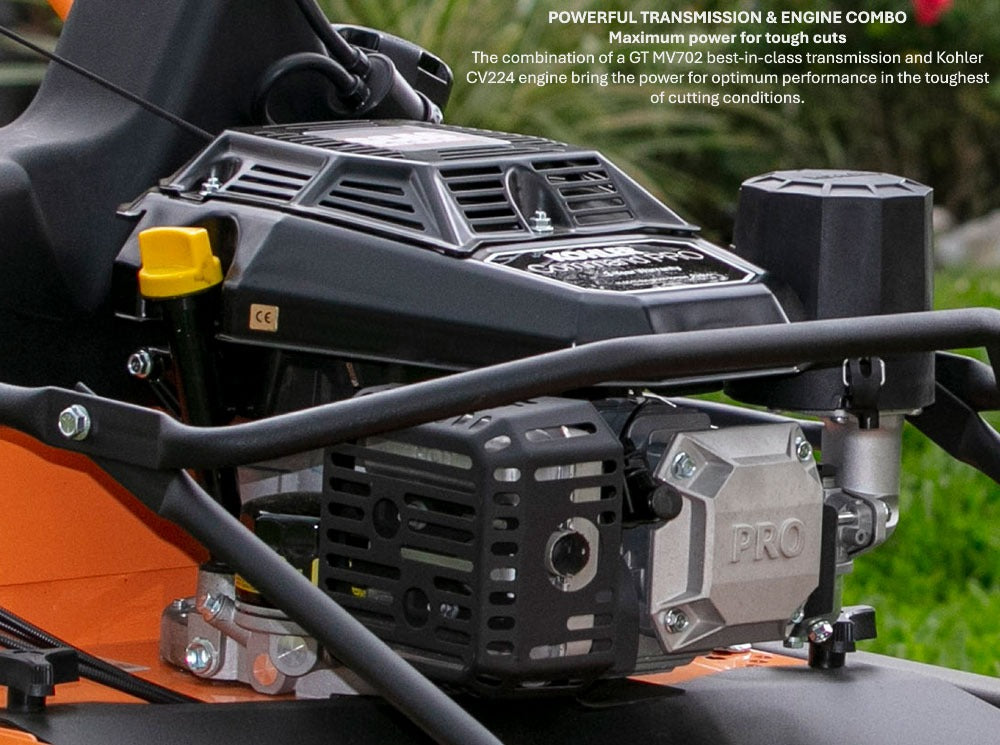

Powerful Transmission & Engine Combo

  • Maximum Power for Tough Cuts: Combines the GT MV702 transmission with the Kohler CV224 engine for optimal performance in demanding cutting conditions.


Specification:

  • Description: 30″ fully fabricated steel cutter deck, Kohler 224CV engine – recoil-start engine
  • Horsepower: 7

Product Dimensions

  • Length – Transport (handles in upright transport position): 41″
  • Length – Minimum (handles in highest operating position): 66″
  • Length – Max (handles in lowest operating position): 73.5″
  • Tracking Width: 28.75″
  • Width (w/ discharge chute): 36.75″
  • Width (w/ discharge block off plate): 31.5″
  • Height – Lowest Operating: 36.75″
  • Height – Max Operating: 45.25″
  • Height – w/ Handle Bar in Storage Position: 57.5″
  • Operating Weight – Bagging: 220 lbs.
  • Operating Weight – Mulching: 214 lbs.
  • Operating Weight – Discharging: 213 lbs.

General Specifications

  • Total Fuel Capacity: 1 gallon (0.37 gallon capacity for California models)
  • Rear Tires: 10.5″ x 3″ rubber tire with glass-filled polypropylene wheel
  • Front Tires: 9” x 2.25” rubber tire with glass-filled polypropylene wheel
  • Drive System Type: GT MV 702 Transmission
  • Forward Ground Speed: Up to 4 mph
  • Parking Brake: Hand lever

Deck Specifications

  • Cutting Width: 30″
  • Type: Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup.
  • Cutting Height: 1.5″ to 5″ in .25″ increments
  • Blade Type: Optimized for maximum performance whether discharging, mulching, or bagging
  • Deck Lift: Hand lever, single-point adjustment
  • Construction: 14-gauge, grade 100 Military-Grade steel deck shell with 12-gauge spindle reinforcement plate, ¼” trim side reinforcement bar for extra protection against impacts
  • Spindles: Aluminum housing with sealed ball bearings
  • Blade Engagement: Blade brake clutch allows operator to disengage cutter blades without shutting off the machine
  • Discharge, Mulch, Bag: Standard
  • Bag Capacity: 2.5 Bushels
