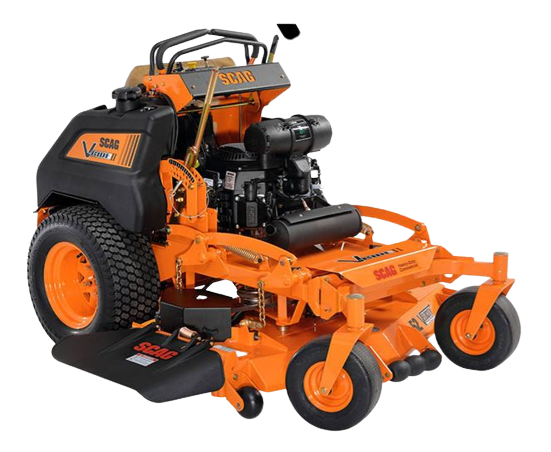

SVRII-52V-25CV-EFI 52" Scag V-Ride II Stand-On Zero Turn Mower (SVRII-52V-25CV-EFI)
|
MODEL NUMBER: SVRII-52V-25CV-EFI
ENGINE
General Type:
Heavy-duty industrial/commercial
Brand:
Kohler Command Pro
Model:
ECV740
Horsepower:
25 HP @ 3600 RPM
Type:
4 cycle gas, electronic fuel injection (EFI), twin-cylinder, air-cooled, OHV, vertical shaft engine
Displacement:
747 cc (45 cubic inch)
Cylinders:
2 cast-iron cylinder liners
Governor:
Electronic type governor with variable speed control set at 3600 rpm (±75 rpm), idle set at 1800 rpm (±75 rpm)
Air Intake Group:
Large capacity 2-stage canister air filter
Exhaust:
Single canister muffler
Fuel Group:
Electronic fuel Injection system for maximum fuel efficiency. High pressure electric fuel pump with inline fuel filter. Choke free operation.
Oil Pump Group:
Full pressure lubrication with oil filter
Starter/Electrical:
Electronic ignition with solenoid shift starter
Charging System:
20 amp
ENGINE DECK
Thickness:
7 gauge steel
Fuel Tank:
8 gallon (30.3 liters) seamless polyethylene
Drive Wheels/Tires:
24 x 9.5 - 12 four-ply pneumatic tubeless, radius edge
Brakes:
Dynamic braking through hydro drive system; standard equipment parking brake
Operator Platform:
Heavy gauge steel with extruded star pattern for no-slip footing. Elastomeric spring suspension for operator comfort.
Operator Comfort Pad:
Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics.
DRIVE SYSTEM
Type:
Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel
Hydro Pumps:
Two Hydro-Gear PK Series 12cc pumps with cooling fans and dump valves for movement without running engine
Drive Wheel Motors:
Two Parker 14 cu. inch cast-iron high-torque wheel motors
Hydro Fluid Cooling:
Pump mounted cooling fans
Steering/Travel Control:
Twin lever steering control with individual control to each wheel.
Dump Valves:
Allows for movement without engine running
Axles:
1.25" heavy-duty, tapered motor shafts
Wire Harness:
14 and 16 gauge wire
Safety Group:
Footplate-actuated operator presence system, blade/clutch and transmission interlock to engine kill
Tiger Eye Advanced Monitoring System:
Blue backlit monitoring screen is IP67 rated. Gauge monitors crucial system and safety functions; integrated hour meter and much more (functions vary by model)
Forward Speed Range:
0 up to 10.5 mph
Reverse Speed Range:
0 up to 5.0 mph
Cutter Deck Specifications
Type
Out-front floating design with special raised front edge and baffling allows all types of grasses to stand up before the cutter blade makes contact for a clean finish without leaving uncut grass. Works extremely well in all grass types, tall or short, thick or fine. The Velocity Plus cutter deck design allows grass to be cut faster and cleaner. Easy cutting height adjustments in the field with no tools.
Construction
10-gauge steel cutter deck top with 10-gauge and 11-gauge support plates, 7-gauge deck skirt. Trim-side wear pad protects deck and landscape.
True Cutting Width
52 inches (90.2 cm)
Cutting Height Adjustment
1-1/2" to 4-1/2" in 1/4" increments
Deck Baffles
Adjustable Custom-Cut Baffle design. Allows the operator to adjust to their individual conditions and grass types for an unmatched quality-of-cut.
Turbo-Baffle
Cutter deck baffle that increases discharge velocity for an even spread of clippings.
Cutter Blades
Three (3) 18" high-strength steel cutter blades

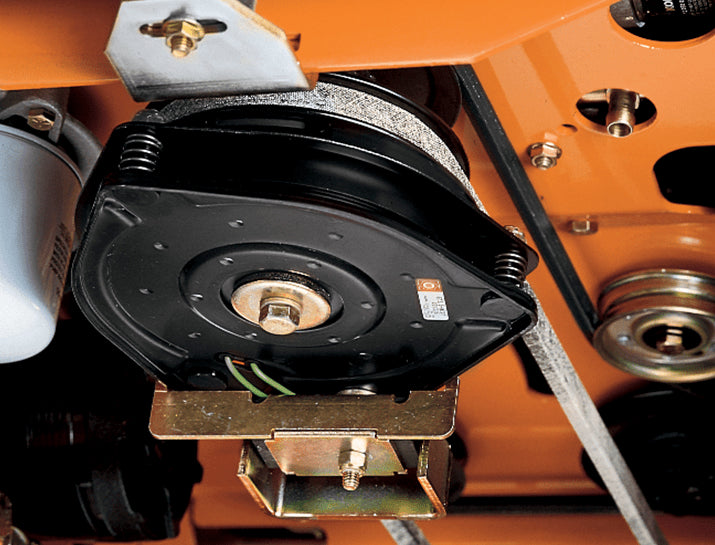

Blade Engagement
Electric blade clutch engagement with dash panel switch
Discharge Opening
Extra wide 17" discharge opening with spring-loaded discharge chute
Caster Wheels
13 x 5 - 6 flat-free semi-pneumatic, with tapered roller bearing pivots
Spindles
Heavy-duty 1-1/8" top dimension spindle shaft, cast-iron housing, tapered roller bearing, low maintenance with top access grease fitting and grease overfill relief poppet; grade 8 mounting hardware; 3-year warranty
Spindle Pulleys
Split steel pulley design with easily removed tapered hubs
Idler Pulley
Large 5" diameter pulley, welded and riveted construction, 1-3/8" O.D. bearings (double stacked ball bearings)
Idler Arm
Heavy-duty dual ball bearing mounting
Cutter Deck Belts
B-section with Kevlar cord
Push Arms
Rear push arms allow for easy cutting height changing and increased durability
Approximate Dimensions
Length: 69.50"
Tracking Width: 48.00"
Width: 65.25"
Width (with discharge in transport position): 53.75"
Height: 47.25"
Turning Radius: Zero Radius Turning
Weight: 1005 lbs.
